Mercury F20 ELH EFI

SoldNewSave £0
£3,600

Outboard Description

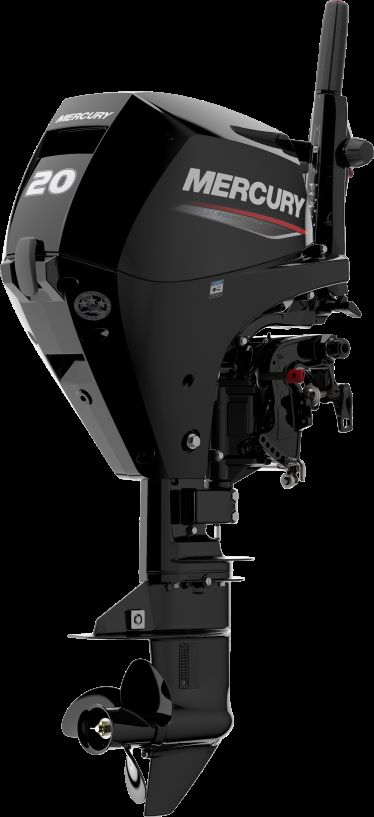

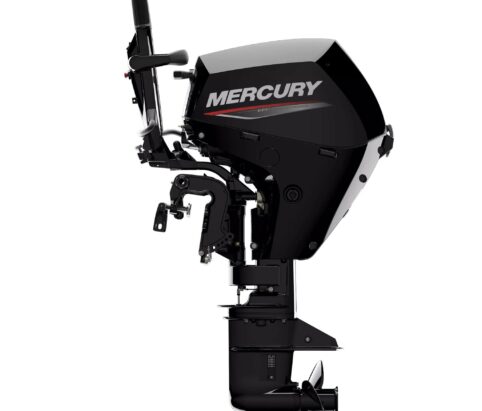

Mercury F20 ELH EFI Four Stroke Outboard

Put amazing power in the palm of your hand. These compact outboard motors take you to the fun, the fish or whatever floats your boat – quickly and reliably. Enjoy best-in-class acceleration to go with best-in-class speed. Easy to install and operate, with reliable starting, low vibration and instant throttle response. It’s worry-free boating at its best.

Low weight and awesome torque get your boat on plane quicker and provide best-in-class acceleration to complement best-in-class top speed.

Mercury F20 ELH EFI – Low weight and awesome torque get your boat on plane quicker and provide best-in-class acceleration to complement best-in-class top speed.

  • 20 hp
  • Long shaft
  • Electric start
  • EFI
  • 12v, 12 amp 145w Charging coil
  • 45 kg

If you require further information on Mercury outboard engines, please contact us by email or phone

An experienced member of our team will be happy to discuss with you engine choices so that you can sure you are buying exactly what you need to suit your requirements.

If you are looking for Outboard Engine spares, accessories or consumables, please visit our Ebay store.



SPECIFICATIONS – 20 EFI HP

HP / kW
  • 20 / 14.7
Engine type
  • Inline 2
Displacement (CID/CC)
  • 20.3 / 333
Full throttle RPM
  • 5700 – 6200
Fuel induction system
  • Single Overhead Cam
Alternator amp / Watt
  • 12/145 electric
Recommended fuel
  • 87 octane / up to 10% ethanol
Recommended oil
  • 25W-40 Synthetic Blend
  • Mercury FC-W 10W-30 4-Stroke Marine Oil
Engine protection operator warning system
  • Low oil pressure
  • Over-rev
  • Overheat
  • Sensor failure
Starting
  • Electric
Steering
  • Tiller
Shaft length
  • 20″ / 508 mm
Gearcase ratio
  • 2.15:1
Dry weight *Lightest model available
  • 99 lbs / 45 kg
CARB star rating
  • 3
Bore and stroke
  • 2.40 x 2.24″ / 61 x 57 mm
Ignition
  • CDI w/electronic spark advance
Fuel system
  • Electronic Fuel Injection (EFI)
Cooling system
  • Water-cooled with thermostat
Gear shift
  • F-N-R
Gearcase options
  • Standard
Trim system
  • Manual
  • Power Tilt
Trim positions
  • 6
Exhaust system
  • Through prop
Shallow water drive
  • Yes
Shallow water trim range (degrees)
  • 16
Remote fuel tank standard (gal / L)
  • 3.2 / 12
Colour
  • Phantom Black





Read More

Product Specification


Engine

Engine Type: Mercury F20 ELH EFI
Displacement: 333cc
No. of cylinders/configuration: 2
Bore x stroke: 61 x 57mm
Full throttle operating range: 5700-6200
Fuel Induction System: Electronic Fuel Injection
Ignition/advance system: CDI with electronic spark advance
Starter system: Electric
Gear ratio: 2.15:1
Kilowatts: 14.7
Steering: Tiller
Alternator/Battery charging capacity: 12/145
